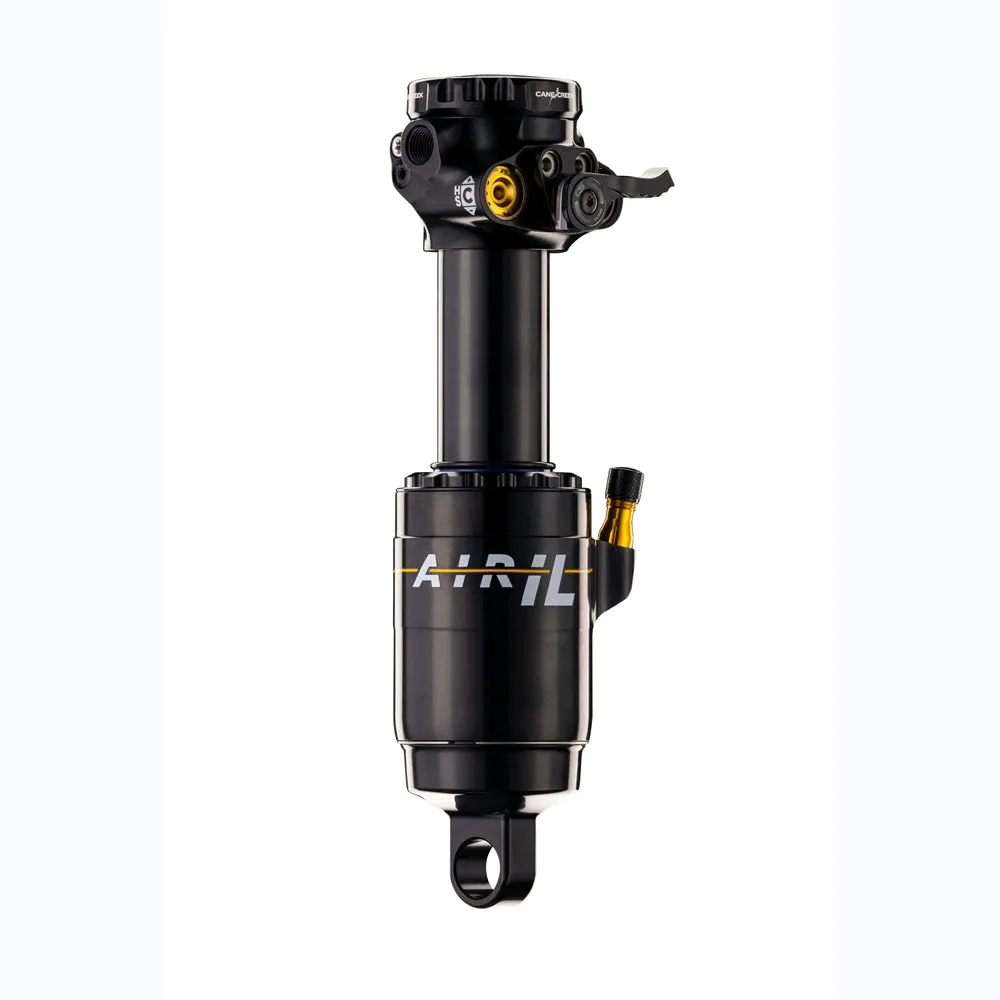

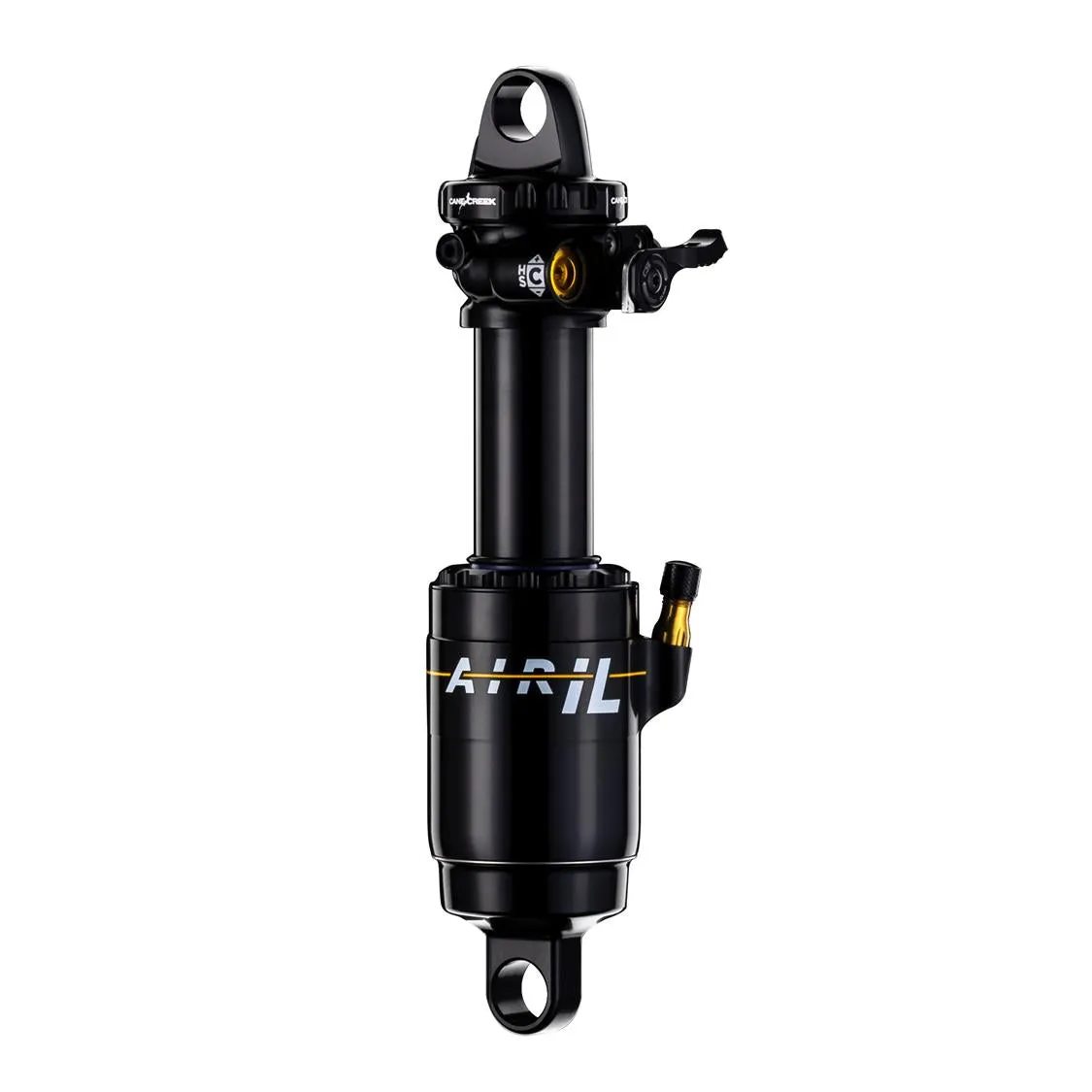

CANECREEK DB AIR [IL]

Introducing the DBAIR [IL], an all new twin-tube inline shock with superior performance and reliability. The first shock to feature Cane Creek’s LinEair Spring, the DBAIR [IL] is the best of both worlds, an air shock that feels more supple, linear and seamlessly supportive throughout its travel.

When developing the DBAIR [IL], our engineering team brought forth great advancements in our design and manufacturing processes, all devised to make our shocks more robust compared to the previous generation. The fully loaded functions of the DBAIR [IL] far outstrips other inline shocks and now offers even greater performance and reliability to unleash the full potential of trail and enduro bikes.

FEATURES

• TwinTube damping for unparalleled small bump sensitivity and adjustability.
• Greater climbing efficency on-the-fly
• Precision machined parts for maximum performance and reliability.
• Four-way independent adjustability
• LinEair Spring

SPECS

WEIGHT: 397 grams (216 mm x 63mm no hardware)

DAMPING: Twin-tube independent compression and rebound in two high-speed and four low-speed damping circuits

ADJUSTMENTS

• 4-way independent adjustment:
• High speed compression
• Low speed compression
• High speed rebound
• Low speed rebound
• Climb Switch on/off

AIR SPRING: LinEair Air Spring

FINISH: Anodized and laser-etched

MOUNTING INTERFACE: High performance low friction IGUS bushing 1/2" Universal Axle

MANUFACTURING: Handbuilt in North Carolina, USA

LENGTHS

165 x 38mm (6.5" x 1.5")
184 x 44mm (7.25" x 1.73")
190 x 50mm (7.5" x 2.0")
200 x 50mm (7.87" x 2.0")
200 x 57mm (7.87 x 2.25")
216 x 63mm (8.5" x 2.5")
METRIC OFFERINGS:
170 x 30mm
170 x 35mm
190 x 40mm
190 x 45mm
210 x 50mm
210 x 55mm
